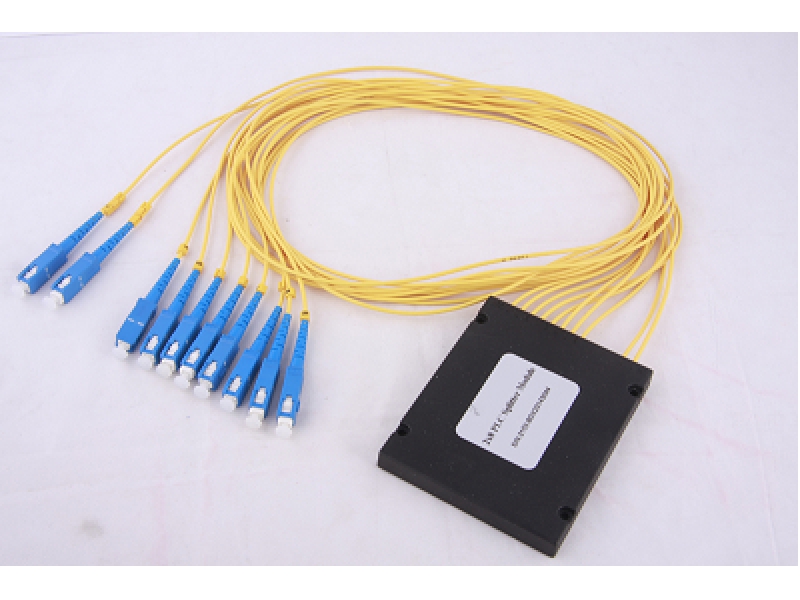

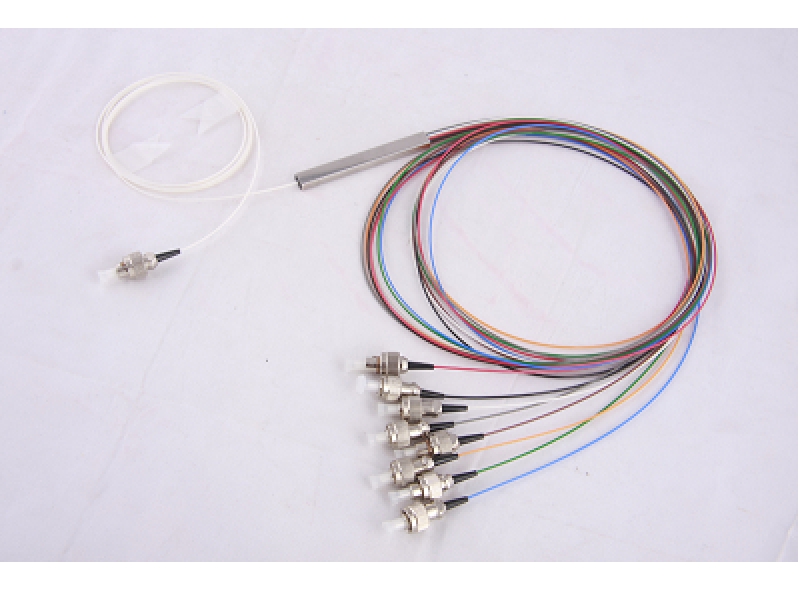

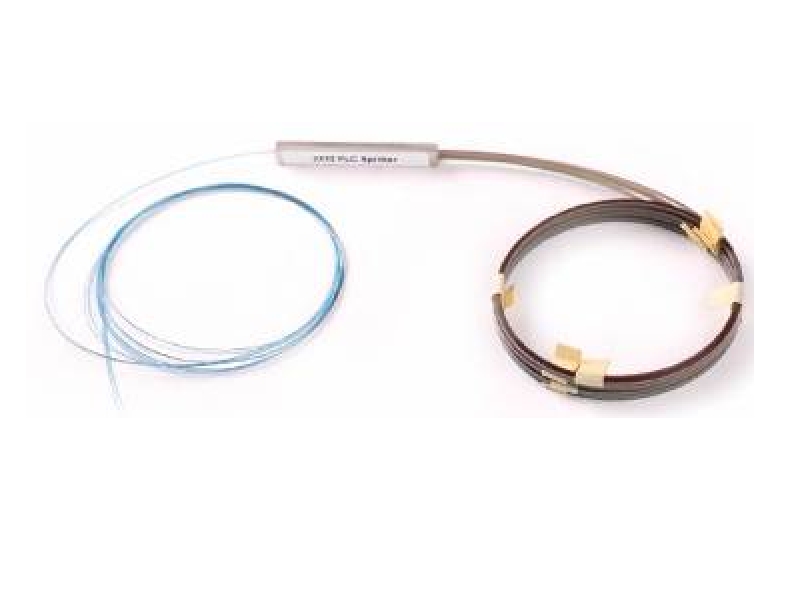

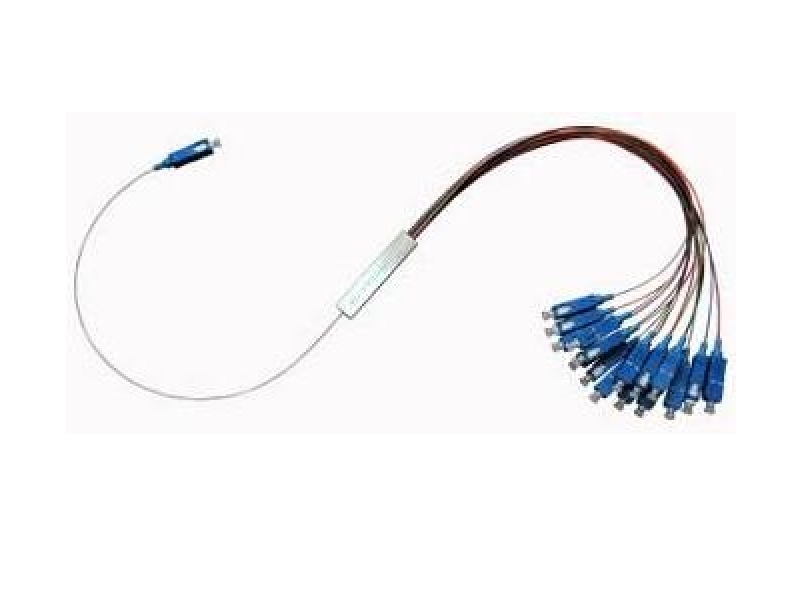

PLC Splitters
Fiber Optic Splitters: PLC Technology, small size, wide wavelength range, high performance & reliability.
Splitter Performance Index
| TT | Splitter | 1:2 | 1:4 | 1:8 | 1:16 | 1:32 | 1:64 |
| 1 | Typical | SM | SM | SM | SM | SM | SM |
| 2 | Working Wavelength (nm) | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 |
| 3 | Insertion Loss (dB) | ≤4.0 | ≤7.6 | ≤10.9 | ≤14.5 | ≤18.1 | ≤21.5 |
| 4 | Uniformity (dB) | ≤0.6 | ≤1 | ≤1.3 | ≤1.7 | ≤2.4 | ≤2.6 |
| 5 | Return Loss (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| 6 | Polarization Dependent | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 |
| 7 | Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| 8 | Wavelength Loss (dB) | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| 9 | Temperature Stability | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| 10 | Relative Humidity (%) | 95% | 95% | 95% | 95% | 95% | 95% |
| 11 | Working Temperature | -100C÷650C | -100C÷650C | -100C÷650C | -100C÷650C | -100C÷650C | -100C÷650C |
