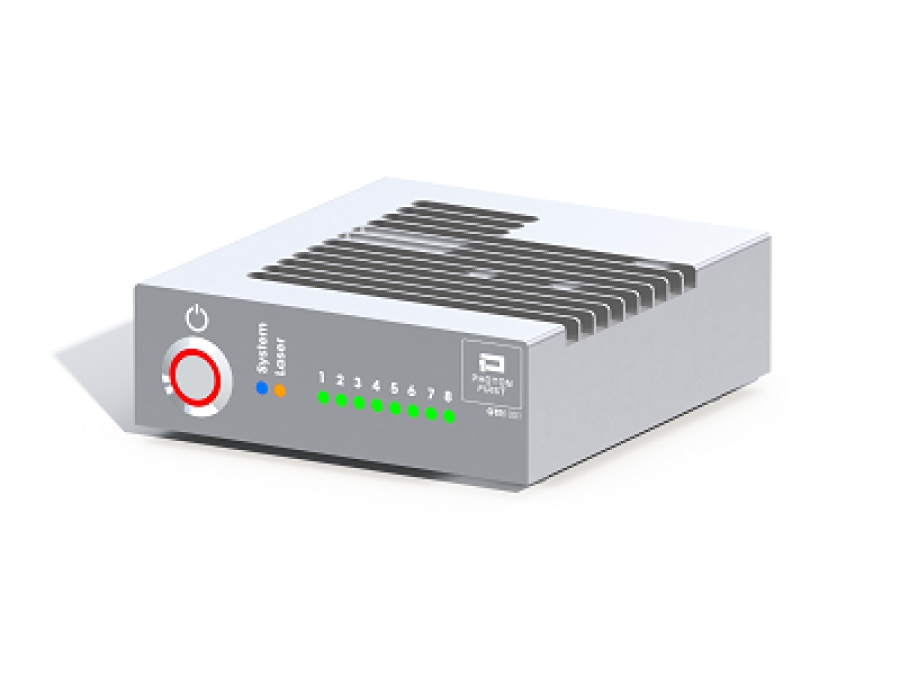

PhotonFirst Fibre Technologies has developed the Next Generation Fibre Bragg Grating (FBG) metrology system Gator, based on Integrated Photonics technology. The Gator features specifically designed integrated photonics functionality (patented technology) that forms the basis for all Gator series.

Features

• Number of Optical Channels: 1
• Sampling Speed: 19,2 kHz
• Wavelength Range: 1515-1585 nm
• Wavelength Stability: 5 pm max
• Wavelength Repeatability: 1 pm | 1 με | 100 mK
• Dynamic Range: 4.8 nm | 4000 με | 480 K
• FBG Sensors per Channel: 8
• Optical Connectors: FC-APC
• Validation FBG, FWHM: 350 pm
• Validation FBG, Reflectivity: 90%
• FBG, FWHM range: 150-400 pm
• FBG, Reflectivity range: >10%
• Interfaces: USB 2.0
• Dimensions: 99x119x35 mm
• Weight: 310 gr
